Steel Glazed Roofing Sheet Building Materials Tile Making Machine For House
1. Main features of Glazed Tile roll forming machine
The advantages of Glazed Tile machine are as follows:
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material , no waste.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side

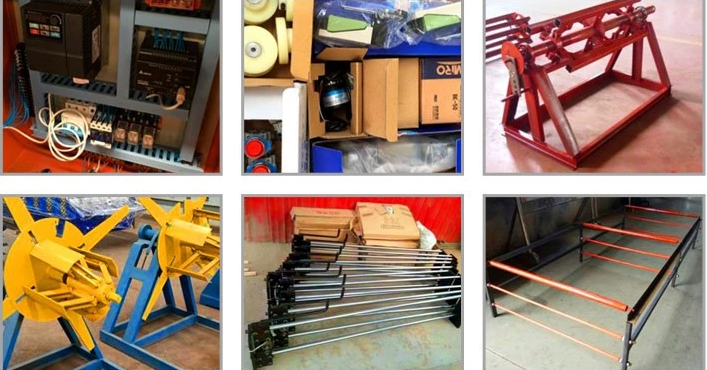

2. Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
3. Specifications:
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 14Rows |
| 3 | Dimensions | 7.2*1.5*1.6m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 3-5m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
4. What makes BEST glazed tile making machine is different with other?
1. Each hydraulic part, we will use two hydraulic jack to make sure the shearing more poweful.
2. We use the pillar post as the shearing pole, it can add oil more easily.
3. All the rollers we will use the hard chroming, to make sure not damage the surface of the coil.
4. At the leveling part, we will add the filming system for the tile making machine.
5. And for the leveling part, we will manual cutter, hydraulic cutter or the others.
5. Terms:
| Delivery | 30days after receive deposite |
| Package | export standard package for container |
| Payment | TT (30% by TT in advance,70% by TT after you inspect machine we need) |
| Delivery date | within 30 working days after receiving deposit |
| Products Warranty | 18months,and we will provide the technical support for whole life of the equipment. |
6. Our service:
1. Once we receive your drawing, we will give you some feedback according to our expereince.If there is some mistake in the drawing, we can point it out at the first time.
2. In the production, you can watch the whole prduction by camer if you like.
3. we give 18 month totally free after sale service and whole life tech support.

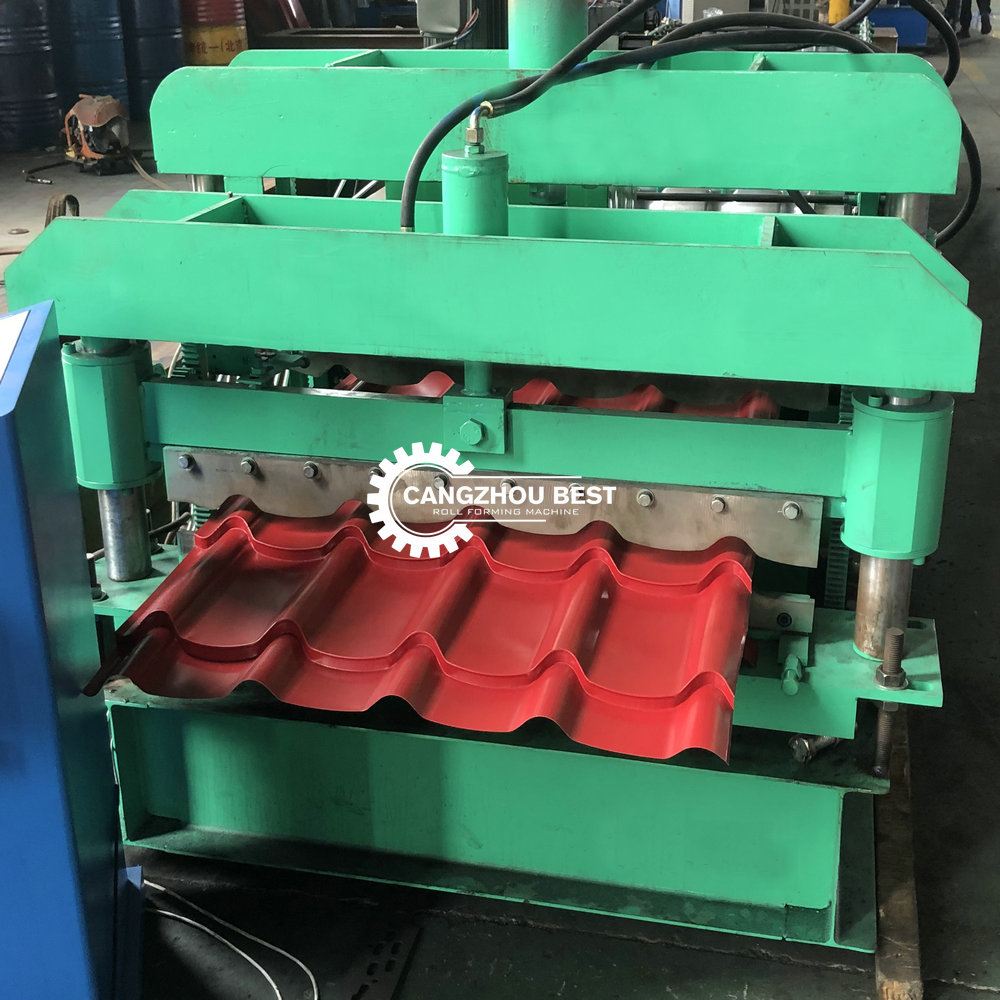

Photos
If you need roll forming machine, just send me a inquiry, we have many type machines, we can produce according to your requirement.
