Chain Drive Roof Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices

Name: Chain Drive Roof Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices
Brand: BEST
Price: 6000 USD

China Chain Drive Roof Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices wholesale

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD6000--10000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Type : Chain Drive Tile Roll Forming Machine

Thickness : 0.3-0.6mm

Width : 1250mm

Warranty : 2 Years

Dimension : 6.7*1.6*1.3m

Equipment Base : 300H Steel Frame

Contact Now

Chain Drive Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices

quick details

1. Suitable to process: Color steel plate
2. Width of the plate: 1220mm
3. Rollers: 15 rows
4. Dimensions: 8.2*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm

12. Control system: PLC control

SPECIFICATIONS FOR Steel Roofing Glazed Tile Roll Forming Machine
Main Roll Forming Machine	Roller station	12 rows
	Material of roller	High grade 45# forged steel plated with hard chrome plating
	Material of cutter	Cr12 mould steel with quenched treatment
Material	Type	PPGI GI AL
	Material width	customized
	Material thickness	0.3-0.8mm
Others	Speed	20m/min
	PLC system	EURA or customized
	Weight	4..5T

Main Components

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Main Tile Roll Forming Machine	1 Unit
Hydraulic Pressing for Step	1 Unit
Hydraulic Cutting System	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Box	1 Unit
Support Tables	2 Units

Specifications

Machine Name	Glazed Roof Tile Roll Forming Machine
Material	Thickness	0.3-0.7mm
	Coil width	Custom-made, 1000mm or 1200mm or 1250mm
	Yield Strength	250-300 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Uncoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Glazed Tile Roll Forming Machine	Forming Stations	13-18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Pressing Device	Pressing Type	Hydraulic type pressing
Pressing Device	Pressing Mould	Cr12 Mov steel, HRC58-62
Cutting Device	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
PLC Electrical Control Board	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic Station	Hydraulic Power	5.5KW
Runout Tables	Table type	Simple nonpower type
Runout Tables	Function	To support the finished panels

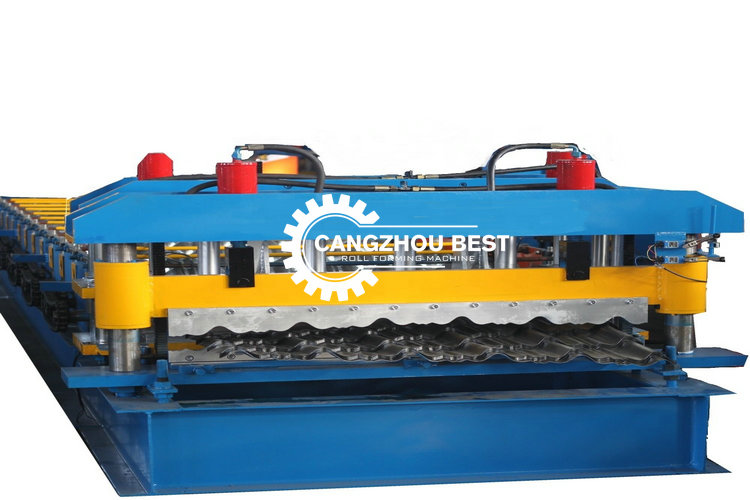

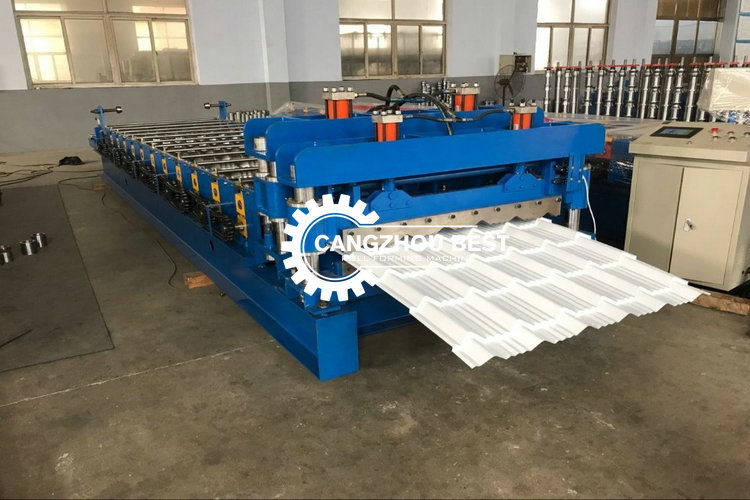

machine picture

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.

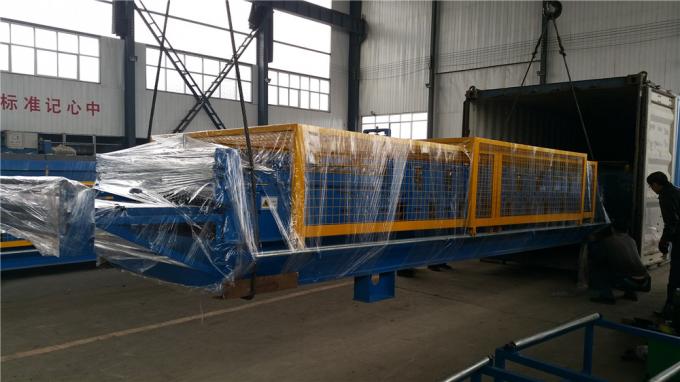

Packing & Delivery

Chain Drive Roof Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices

Size: 7200 (L) * 1450 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.

Product Tags:

roof panel roll forming machine

steel roof tile forming machine

Chain Drive Roof Tile Roll Forming Machine With Hydraulic Pressing Cutting Devices Images
